TOPOLOGY AND SETTING UP SPLUNK ENVIRONMENT

This app can be set up in two ways:
1. Standalone Mode:
* Install the Nessus Professional Add-on for Splunk.
2. Distributed Mode:
* Install the Nessus Professional Add-on for Splunk on the search head. The Add-on configuration is not required on the search head.
* Install the Nessus Professional Add-on for Splunk on the heavy forwarder. Configure the Add-on to collect the required information from the Nessus Professional on the heavy forwarder.
* The Add-on do not support universal forwarder as it requires python modular inputs to collect the data from Nessus Professional.
* The Add-on do not require on the Indexer.

DEPENDENCIES

The Add-on does not have any external dependencies.

INSTALLATION

The Nessus Professional Add-on for Splunk needs to be installed on the Search Head and heavy forwarder.

From the Splunk Web home screen, click the gear icon next to Apps.
Click on Browse more apps.
Search for Nessus Professional Add-on for Splunk and click Install.
Restart Splunk if you are prompted.

DATA COLLECTION & CONFIGURATION

Generate API Credential on Nessus Professional

User needs to generate ClientID and ClientSecret from Nessus Professional server.
Reference - <TODO>

Configure Account

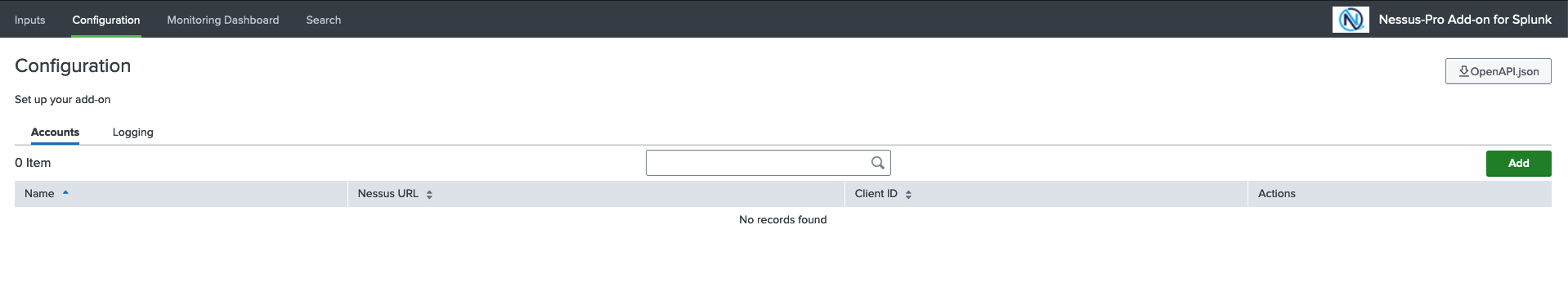

Navigate to Nessus Professional Add-on for Splunk > Configuration > Account on Splunk UI.
Click on Add.
Add below parameters:

Parameter	Description
Account name	Any unique name to distinguish this client-id and secret from other in case of multiple accounts configured in the Add-on.
Nessus URL	Nessus Professional URL with IP/hostname and port number, without http/https scheme. (ex. 10.10.10.10:8834)
Client Id	Client id received from Nessus Professional.
Client Secret	Client secret received from Nessus Professional.

Click on Add.

NOTE - If Nessus Professional is running on http instead of https, then user needs to add http value for the parameter http_scheme in the ta_nessus_pro_settings.conf conf file under the stanza api.

NOTE - Additionally if user don't have valid SSL certificate on Nessus Professional and would like to skip the SSL certificate validation then user can add false value for verify_ssl parameter in the ta_nessus_pro_settings.conf conf file under the stanza api.

Configure Data Inputs

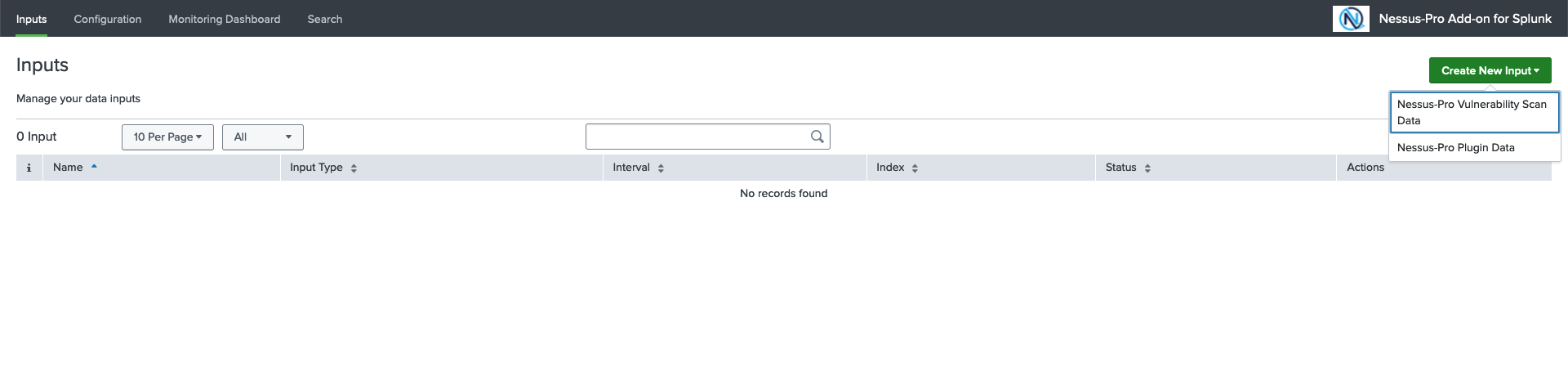

Navigate to Nessus Professional Add-on for Splunk > Input on Splunk UI.
Click on Create New Input.
- There are two options as described below.
- Vulnerability Scan Data is what is most useful. But if you need you can even collect Plugin data in Splunk.

1. Nessus Professional Vulnerability Scan Data

Default and recommended interval is 14400 (4 hour) or more.

2. Nessus Professional Plugin Data

Default and recommended interval is 604800 (7 days) or more. Interval is long as this input will make thousands of API call to Nessus Professional server.
Below are parameters that needs to be configured.

Parameter	Description
Name	An unique name for the Input.
Interval	Interval in seconds, at which the Add-on should collect latest data. Default interval for input is described above.
Account to use	Select the account name configured in the Configuration page, which you want to use for data collection.
Index	Select/Type the index name in which Nessus Professional data will be stored in Splunk.
Start Date	Select the start date from which point onwards you want to collect the data. Data older than that point will be skipped.
