Day/Night Map viz

To use this visualization, start with the following search:

|makeresults

Example of clocks across top, using x/y positioning.

| makeresults
| eval raw = "
x=17, y=12, type=clock, content=Pacific, timezone=America/Los_Angeles ###
x=29, y=12, type=clock, content=Eastern, timezone=America/New_York ###
x=50, y=12, type=clock, content=UTC/GMT, timezone=UTC ###
x=73, y=12, type=clock, content=IST, timezone=Etc/Gmt+5 ###
x=90, y=12, type=clock, content=AEDST, timezone=Australia/Sydney ###
"
| makemv delim="###" raw
| mvexpand raw
| rename raw  as  _raw
| extract

Clocks at locations (lat/long positioning), with different colors and sizes.

| makeresults
| eval raw = "
lat=-27.3818631, lon=152.7130211, type=clock, content=Brisbane, timezone=Australia/Brisbane, size=0.8 ###
lat=51.5285582, lon=-0.2 416783, type=clock, content=London, timezone=Europe/London, color=#00cc00 ###
lat=39.372883, lon=-73.9391617, type=clock, content=\"New York\", timezone=America/New_York, size=1.5, color=#F1813F ###
lat=34.0203996, lon=-118.5518137, type=clock, content=\"Los Angeles\", timezone=America/Los_Angeles, color=#DC4E41 ###
"
| makemv delim="###" raw
| mvexpand raw
| rename raw  as  _raw
| extract

Field reference

A table of data can be provided to this visualization to render overlays on the map. Either lat/lon or x/y must exist for each row.

Field	Valid values	Description
`lat`	`-180` to `+180`	Latitude coordinate for the overlay item.
`lon`	`-180` to `+180`	Longitude coordinate for the overlay item.
`x`	`0` to `100`	The X coordinate as a percentage (0=left, 100=right).
`y`	`0` to `100`	The Y coordinate as a percentage (0=top, 100=bottom).
`type`	`icon`, `text`, `clock`	The overlay type
`content`	text	When `type=text` this is the text content (can contain HTML). When `type=icon` this is the icon class (see section below). When `type=clock` this is the sub-text content.
`size`	`0` +	(Optional) A multiplier of the default size for this item.
`color`	Valid css color	(Optional) Color of the item.
`tooltip`	text	(Optional) A tooltip to display on mouse hover (can contain HTML).
`timezone`	ISO timezone	(Optional) The timezone for the clock https://en.wikipedia.org/wiki/List_of_tz_database_time_zones Can also be specifed as exact offset, e.g. `etc/GMT+5:00`
`shadow`	`0` to `1`	(Optional) Drop shadow opacity of the item. Set 0 for no shadow.
`weight`	`normal`, `bold`	(Optional) Font-weight (clock and text types only).

The default options for overlays are configured in the visualization formatting options:

Icons

Any icon from the FontAwesome v5 Free icon sets can be used. The complete list is here: https://fontawesome.com/cheatsheet/
The "solid" icon set is the default, but the "regular" set can be used by prefixing far fa-*

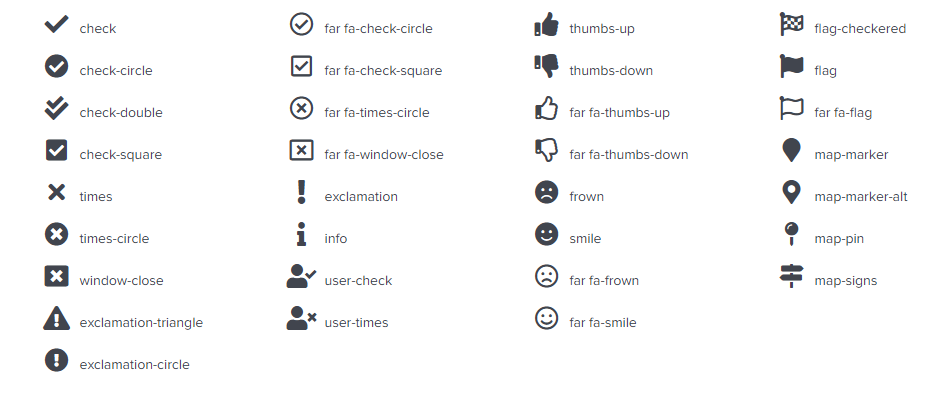

Below are a list of the more useful icons that are available.

.

Copyright (C) 2019 Chris Younger
I am a Splunk Professional Services consultant working for JDS Australia (https://www.jds.net.au), in Brisbane Australia.

Third party software

The following third-party libraries are used by this app. Thank you!

jQuery - MIT - https://jquery.com/
Moment.js - MIT - https://momentjs.com/
World Daylight Map - MIT - https://github.com/pauljnoble/world-daylight-map
D3.js - BSD 3-Clause "New" or "Revised" License - https://d3js.org/
D3 Geocode Projections - BSD 3-Clause "New" or "Revised" License - https://github.com/mbostock/d3/wiki/Geo-Projections
Topojson - BSD 3-Clause "New" or "Revised" License - https://github.com/mbostock/topojson
Suncalc - BSD 2-Clause "Simplified" License - https://github.com/mourner/suncalc
MaxMind cities - Creative Commons Attribution-ShareAlike 4.0 International License. - https://dev.maxmind.com/geoip/geoip2/geolite2/
Font Awesome - Creative Commons Attribution-ShareAlike 4.0 License - https://fontawesome.com/
