Viz Extensions

This app use D3js to create custom visualization that can be used in splunk.
For now it contains only a visualization for the table data which provides a possibilty to show drilldown for subcolumns (show/hide subcolumns by clicking on main columns).
Other custom visualization will be added soon.

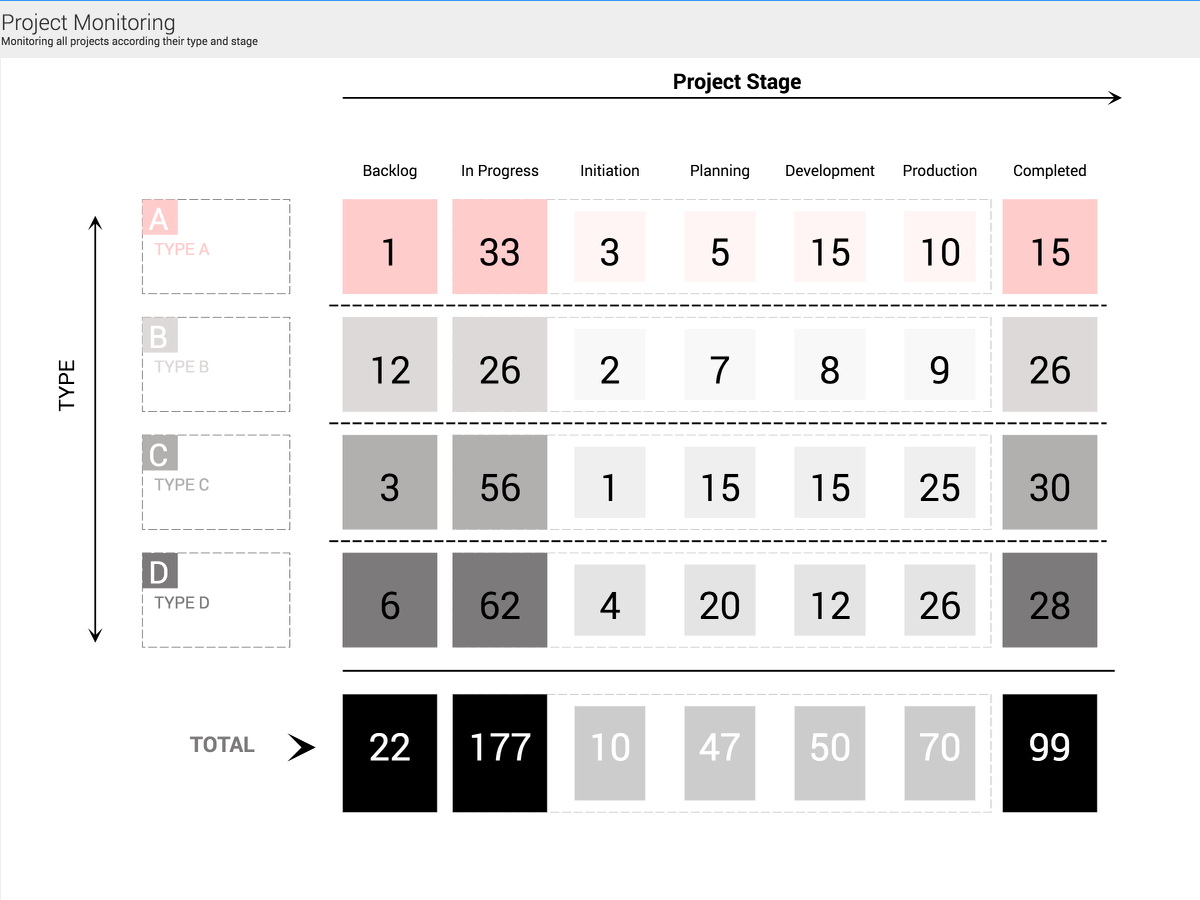

An exemple of project monitoring table has been integrated in this app which may give an inspiration.

Input requirements and visualization options

for each data point, you should give at least its column/row and count, if it's a point of subcolumn, you should also add the column type and its parent column.
for this version, you should adjust your Splunk outputs to meet the input requirements
fields demanded : columns, rows, col_type, parent_col, count
The explications of each field:
- columns Column name of data point.
- rows Row name of data point
if the column is a sub-column, you must add the below informations to your Splunk outputs:
- col_type if the column is a sub column of a parent, use keyword sub
- parent_col the parent column of the sub-column
Configurable options for this visualization:
- Scale you can ajust the scale of the whole viz.
- Colors you can change the color of each line.
- ylabel The title of your y-axis.
- xlabel The title of your x-axis.

Requirements

This version has been tested on 6.5.
App is known to work on Linux,and Mac OS X, but has not been tested on other operating systems. Window should work.

Prerequisites

Splunk version 6.5 or Higher

Installation instructions

1) copy repo into $SPLUNK_HOME/etc/apps/.

OR

2) Install through apps.splunk.com

Recommendations

It is recommend that this be installed on an Search head.

Bug Report/ Feature Request

viz_extensions

Visualisation extensions for Splunk
