Disk Monitoring

This app is NOT supported by Splunk. Please read about what that means for you here.
Overview
Details

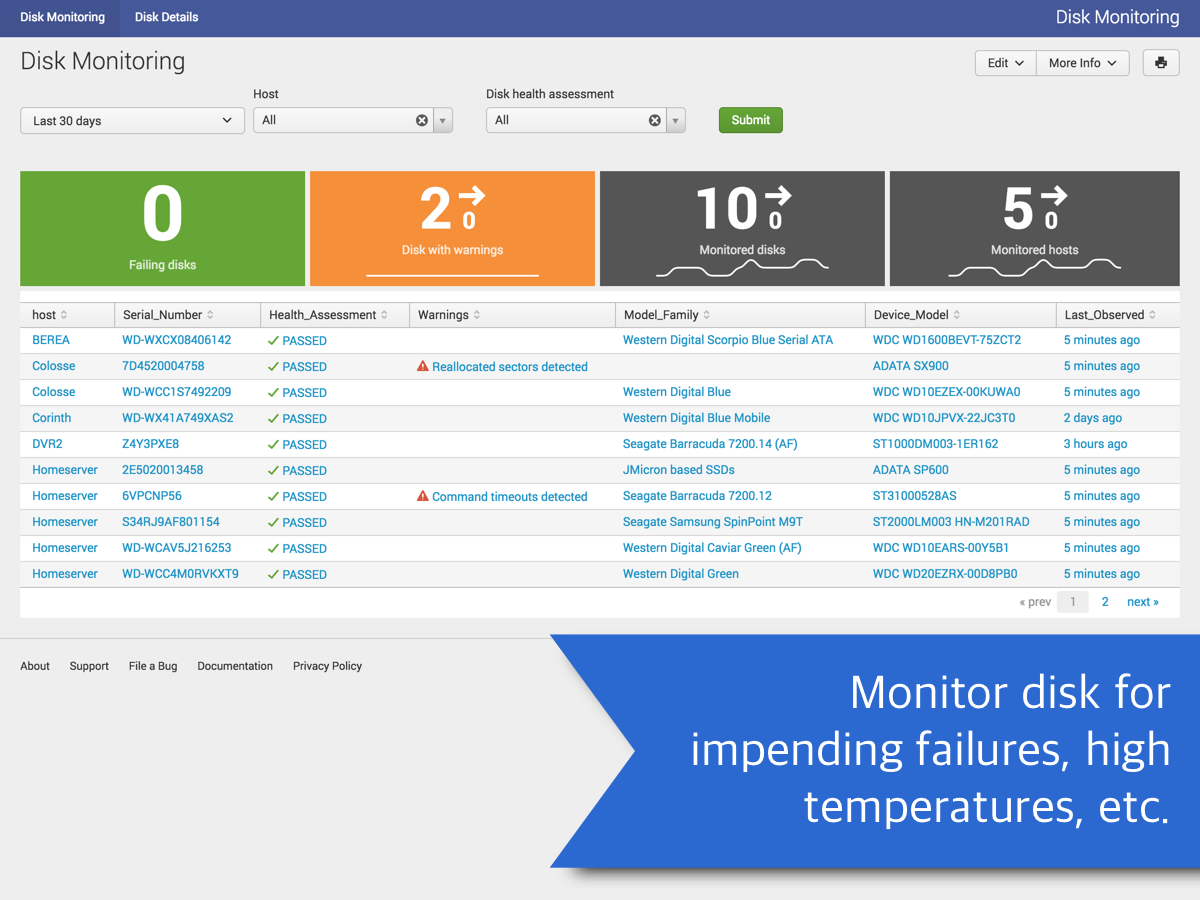

Use Disk Monitor to detect hard-drive failures before they occur. This app reads the data from the self-monitoring technology (also known as S.M.A.R.T. ) built into most drives in order to alert you when a drive appears to be failing.

The app is designed to be easily installed. On Windows, the app will collect hard-drive immediately with no additional configuration necessary (Unix requires the installation of smartctl from http://smartmontools.org).

Please consider supporting me in the developing this app; see https://github.com/sponsors/LukeMurphey

Background

The app is designed to be easily installed. On Windows, the app will collect hard-drive immediately with no additional configuration necessary (Unix requires the installation of smartctl from http://smartmontools.org).

Included Inputs

The app contains a series of scripts that will:

  1. Perform a S.M.A.R.T. self-test: this is recommended monthly
  2. Obtain S.M.A.R.T. data: this is recommended hourly

Several versions of the scripts are included:

  • smartmon_results.cmd: Obtain S.M.A.R.T. data and tests results (Windows, enabled by default)
  • smartmon_results.ps1: Obtain S.M.A.R.T. data and tests results (Windows, Powershell version)
  • smartmon_results.sh: Obtain S.M.A.R.T. data and tests results (*nix)
  • smartmon_short_test.cmd: Performs a short self-test (Windows, enabled by default)
  • smartmon_short_test.ps1: Performs a short self-test (Windows, Powershell version)
  • smartmon_short_test.sh: Performs a short self-test (*nix)

smartctl binaries for Windows are included by default in order to make installation easier. For this reason, the CMD scripts are enabled by default.


Windows

This app doesn't require Python and can be installed on a Universal Forwarder as well as a heavy forwarder. The input for performing hourly data gathering and monthly tests should work by default. No further changes should be necessary other than installing the app on a forwarder.

The app publishes views that will appear when the app is installed on a Search Head. It is recommended that you install the app on the Search Heads in order to monitor the Search Head disks and to use the analysis views.


Non-Windows

Install smartctl

The binaries are not included for non-Windows platforms. You will need to first install smartctl for your platform. See http://smartmontools.org for more details. Note that native packages may be available for your platform. For example, apt-get can be used to install smartmontools on Ubuntu (e.g. "sudo apt-get install smartmontools"). Make sure smartctl is in the path so that Splunk can run it. smartctl will also need root access. Thus, make sure it runs with the proper permissions.

Enable collection scripts

The collection scripts are not enabled by default since the smartctl binaries are not included with by default for non-Windows platforms. You will need to edit the inputs in order enable them. This can be done in the Splunk Manager by enabling the "smartmon_results.sh" and/or "smartmon_short_test.sh" script accordingly. You can also deploy a local version of inputs.conf to enable them:

   [script://./bin/smartmon_results.sh]
   disabled = 0

   [script://./bin/smartmon_short_test.sh]
   disabled = 0

See http://lukemurphey.net/projects/splunk-smartmon/wiki/Installation.

Release Notes

Version 1.1.5
Jan. 12, 2020

Fixing issue where the tabs didn't work on Splunk 8.0

Version 1.1.4
Jan. 25, 2018

1) Fixing issue where you could not get past the setup page
2) Improved the appearance of the tabs

Version 1.1.3
Dec. 18, 2017

Fixing issue where the first attribute was not listed on the disk details page

Version 1.1.2
Dec. 12, 2016

Updating *nix shell scripts to work on shells that don't support the "here string" operator

Version 1.1.1
Dec. 8, 2016

Removed unnecessary setup page

Version 1.1
Dec. 5, 2016

1) Added disk test reporting dashboard
2) Added the search views to the nav
3) Updated icon

Version 1.0
Oct. 31, 2016

1) Fix commented out but incorrect cron schedule 2) Fixed incorrect regex on Disk Details dashboard that sometimes caused self test results to be parsed incorrectly 3) Added single value of disks with warnings 4) Added filtering option for disks with warnings on the Disk Monitoring dashboard

Version 0.6
Aug. 29, 2016
  • Updated README
  • Added last observed time (useful to determine if hosts are reliably reporting data)

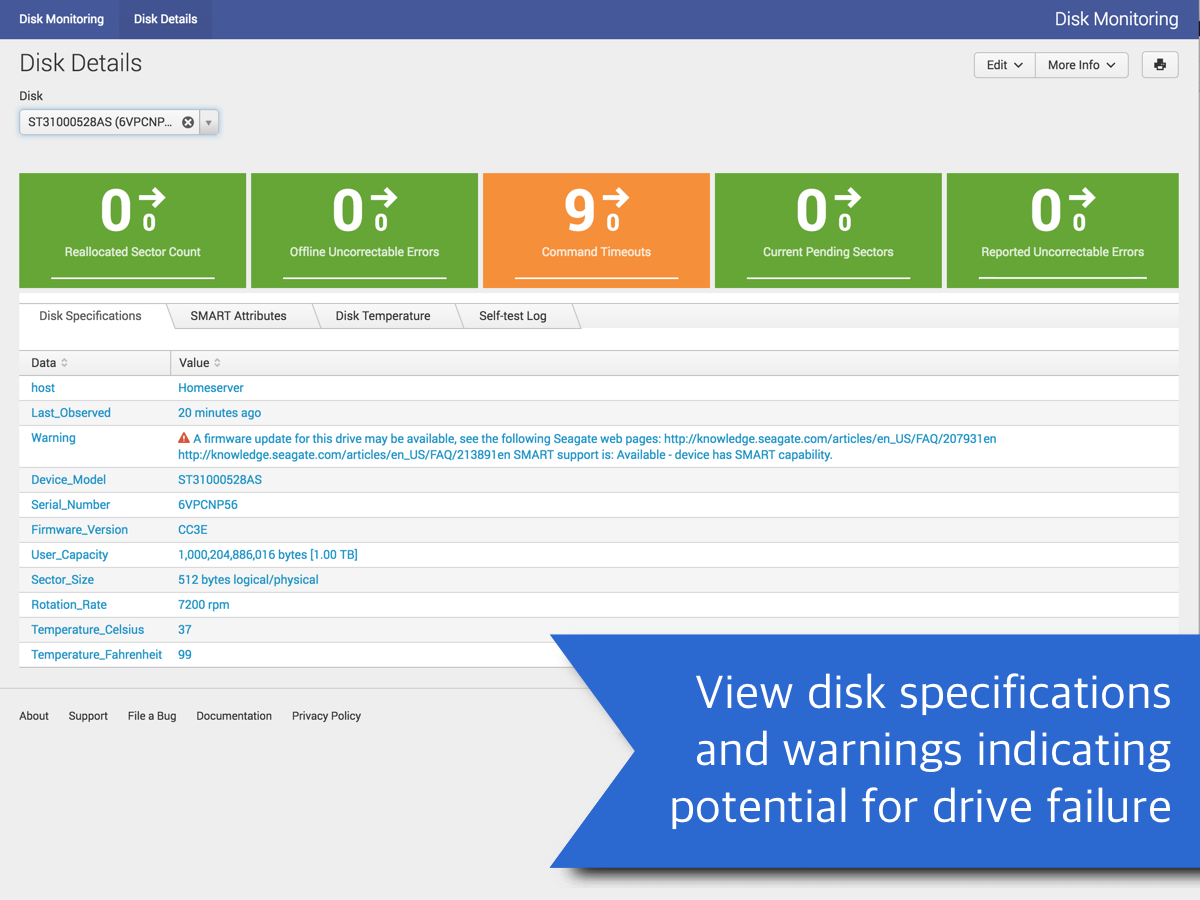

  • Added temperature monitoring to the disk details page
  • Fixing issue where attributes were sometimes listed as blank (due to parse issue)
  • Disk details page now includes panels in tabs
  • Added rendering of self-test logs to disk details page
  • Added search to alert you to failing disks
  • Changed the line-breaker to work with multiple versions of smartmontools
  • Warning messages from smartctl are now parsed and displayed on the dashboards
Version 0.5
Aug. 23, 2016

Initial version
