3CX PhoneSystem app for Splunk

Splunk AppInspect Passed
Admins: Please read about Splunk Enterprise 8.0 and the Python 2.7 end-of-life changes and impact on apps and upgradeshere.
Overview
Details
3CX PhoneSystem app for Splunk, contains reach and immersive dashboards to provide proper insights on calls from 3CX phone system.

Splunk App for 3CX Phone System

OVERVIEW

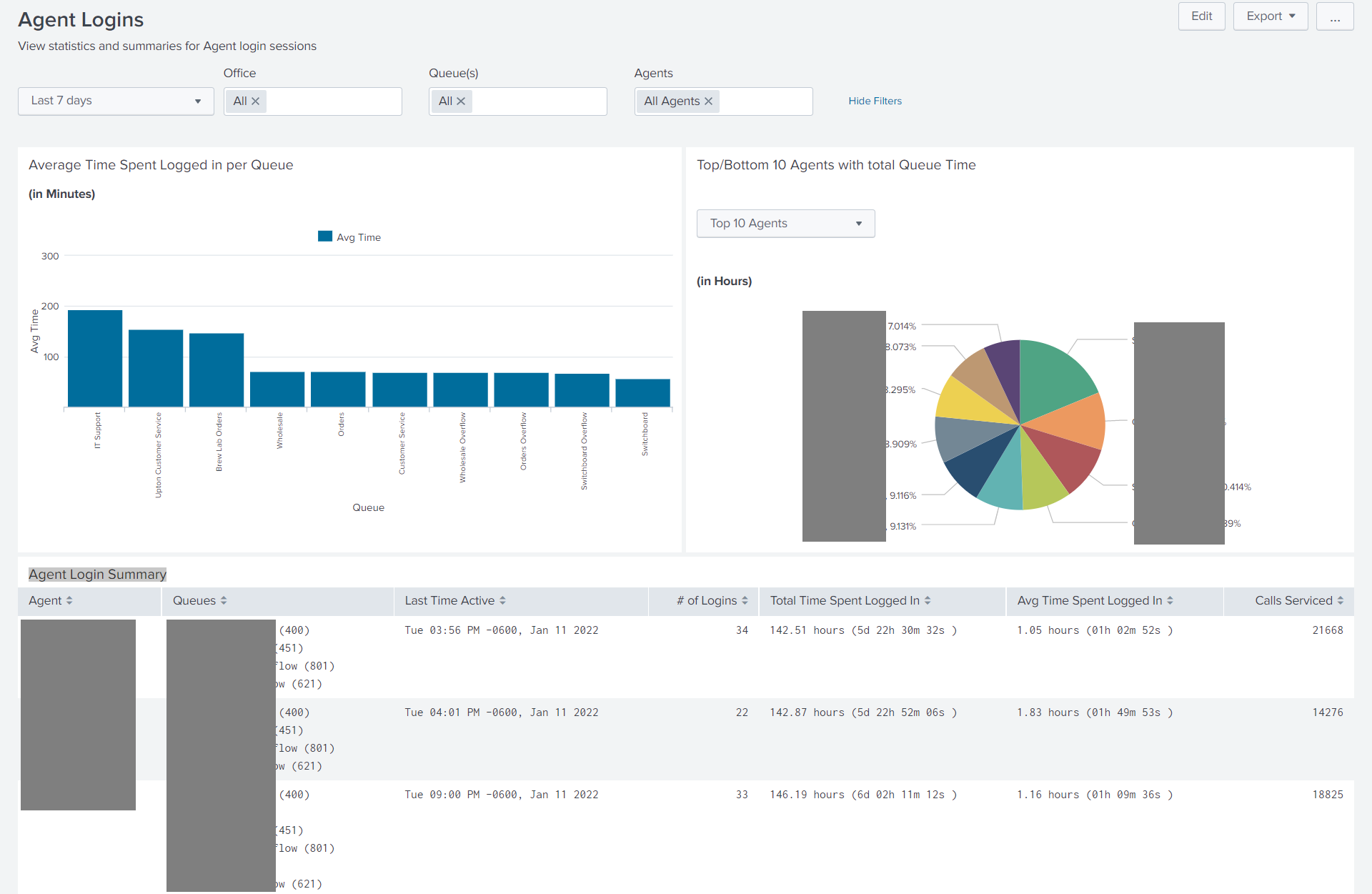

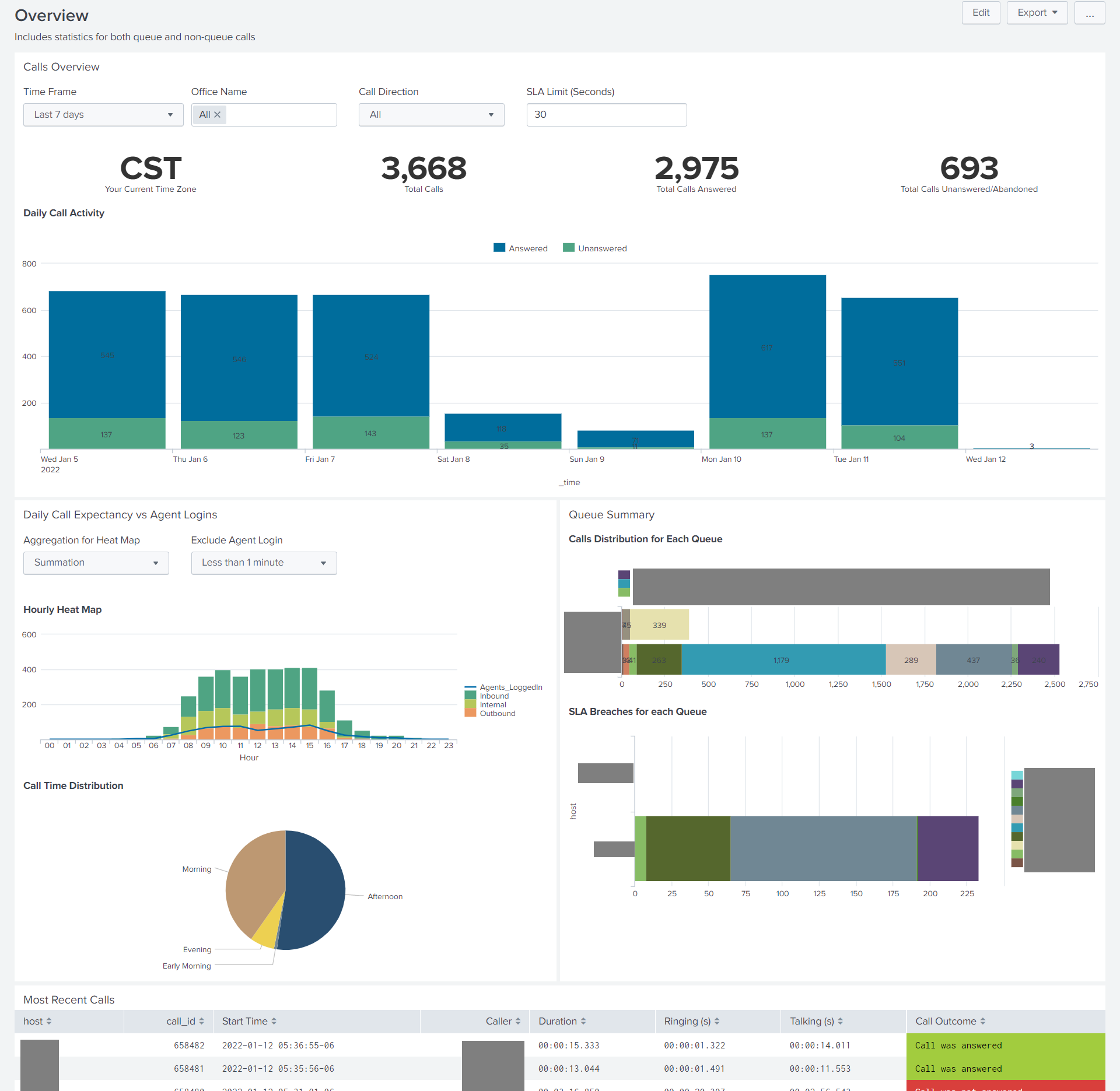

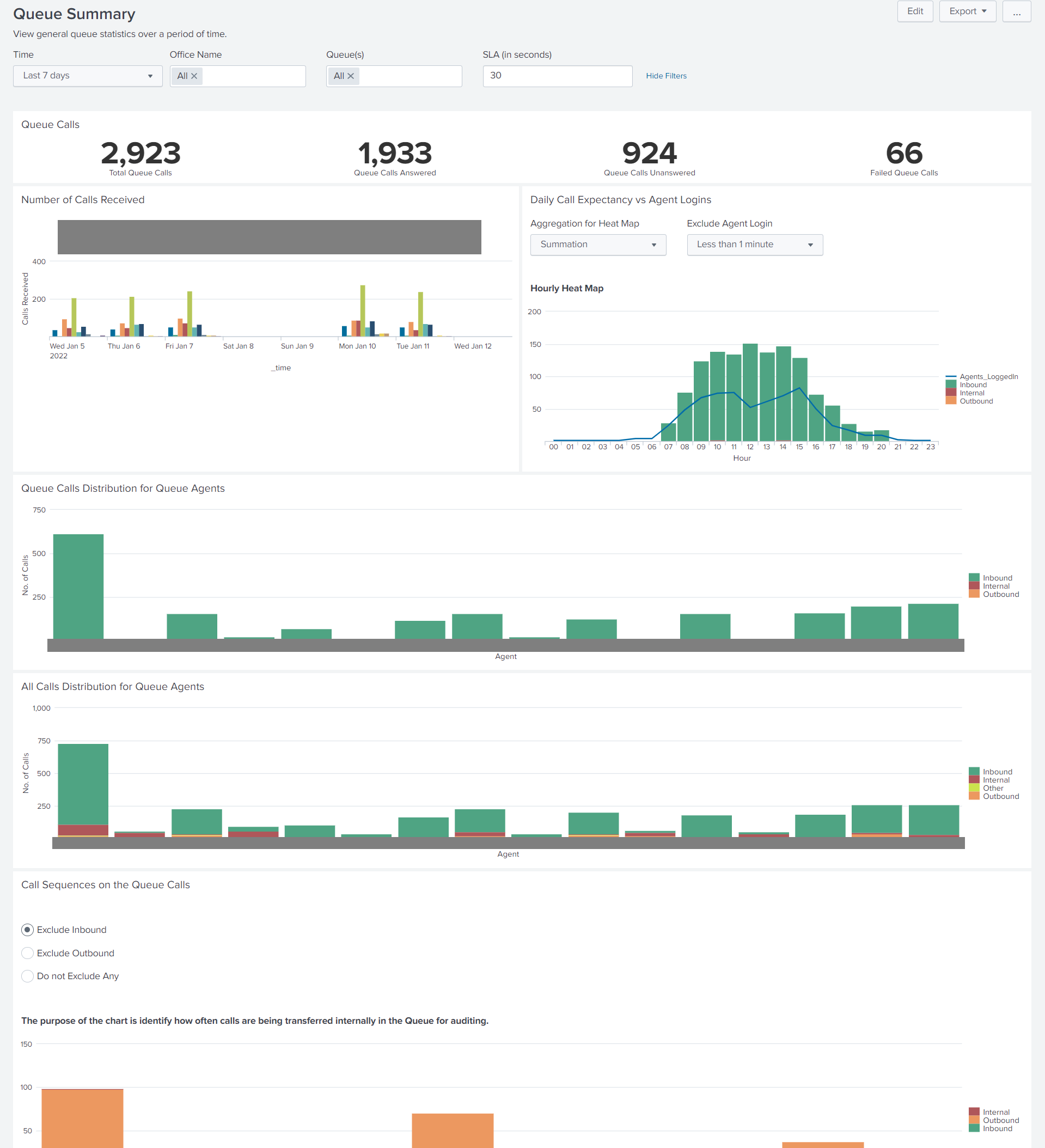

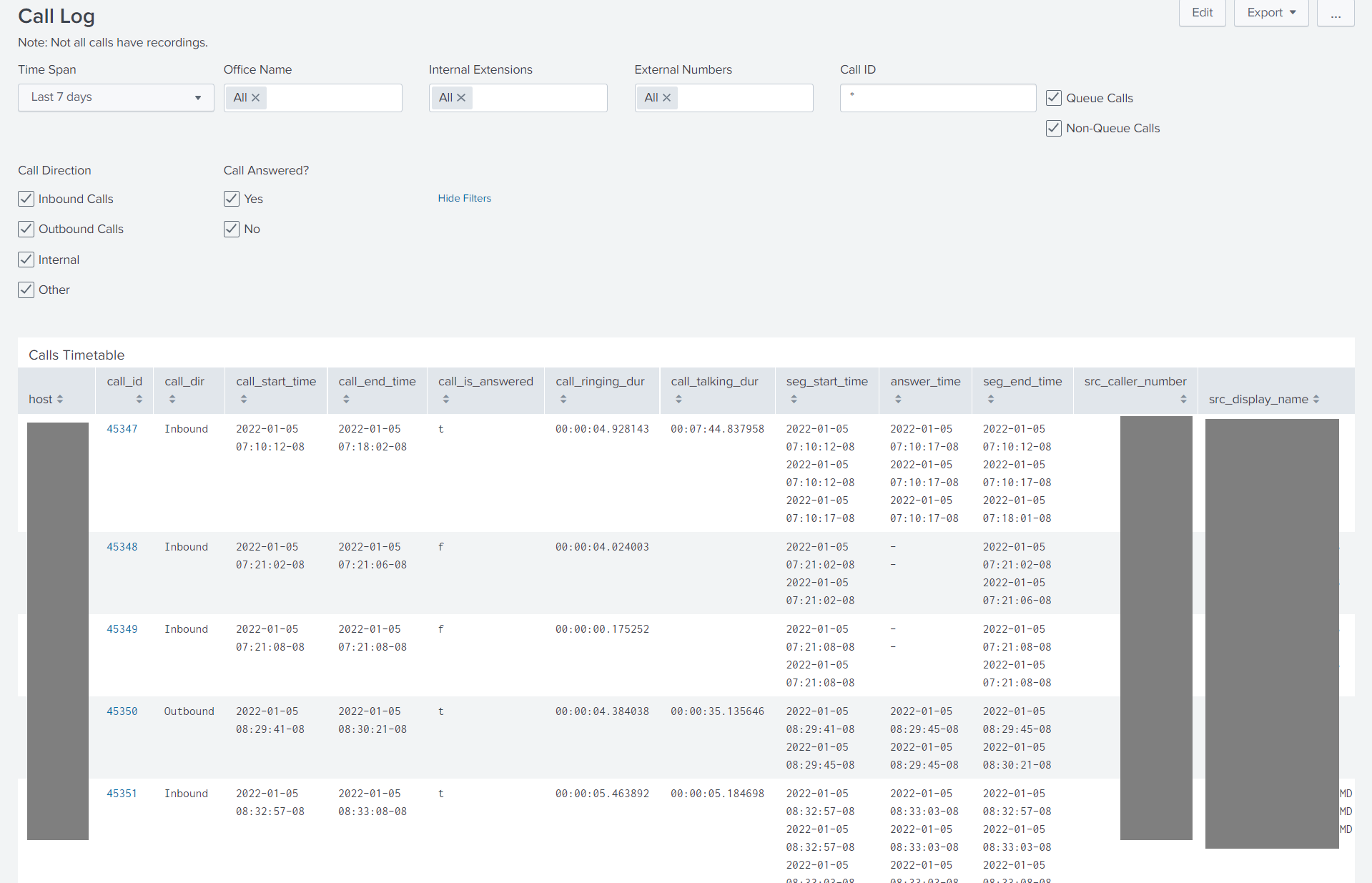

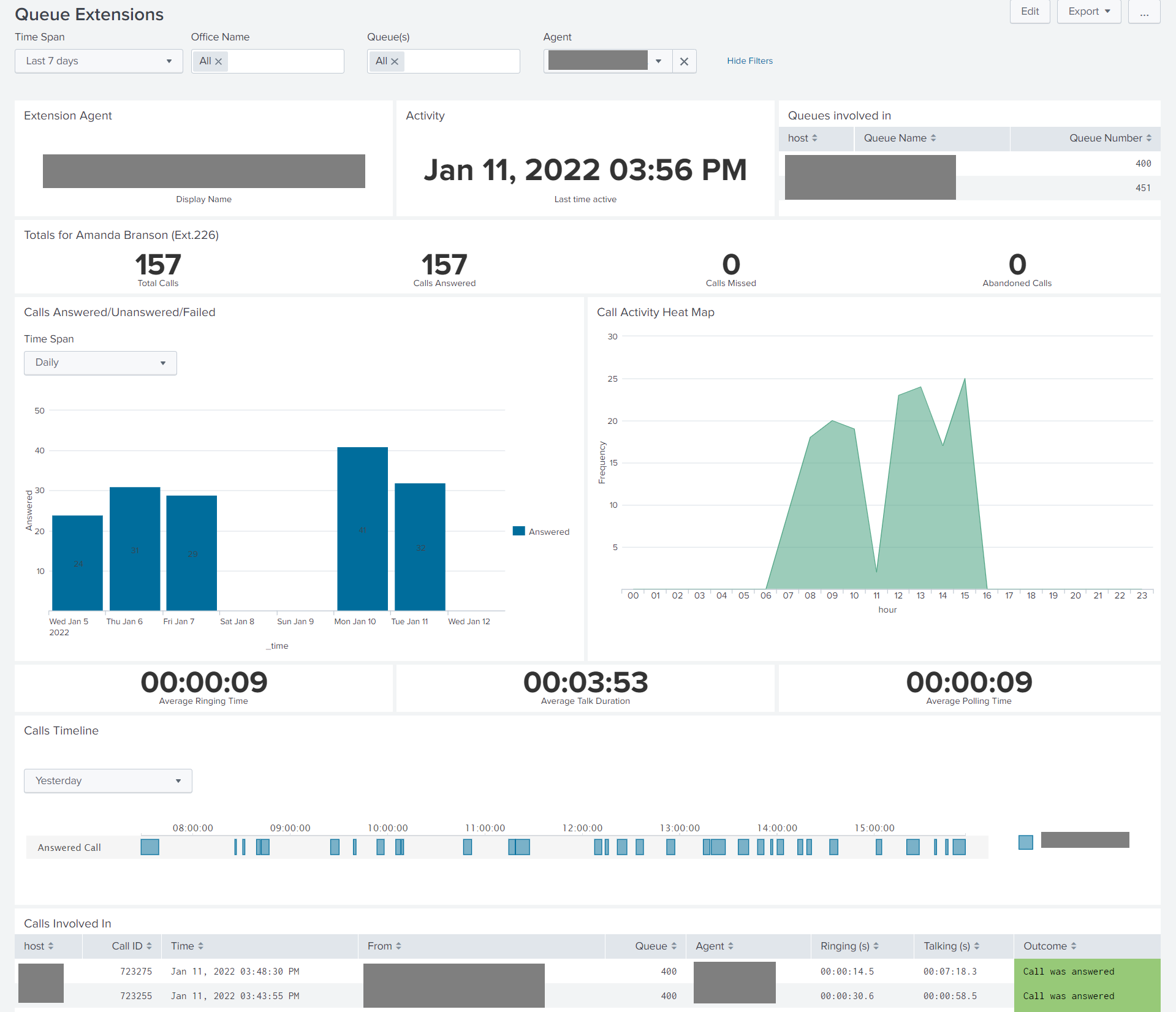

The Splunk app for 3CX Phone Systems is used to present the 3CX Phone Systems information into Splunk. There are 5 dashboards named Overview and Queue Summary, Agent Logins, Queue Extensions and Call Logs. There are tabs for Reports and Alerts. User can schedule pre-defined report creation and can get it over email. Alerts are generated when there is no data ingested for particular sourcetype.

  • Author - CrossRealms International Inc.
  • Version - 1.0.0
  • Build - 1
  • Creates Index - False
  • Compatible with:
  • Splunk Enterprise version: 8.0, 7.3, 7.2 and 7.1
  • OS: Platform independent
  • Browser: Google Chrome, Mozilla Firefox, Safari

TOPOLOGY AND SETTING UP SPLUNK ENVIRONMENT

This app can be set up in two ways:
1. Standalone Mode:
* Install the Splunk App for 3CX.
2. Distributed Mode:
* Install the Splunk App for 3CX on the search head. (Required for dashboards.)
* App setup is not required on the forwarder.
* Note: Universal forwarder is not supported.
Create Index named 3cx to store and search the data collected by forwarder.

INSTALLATION

Follow the below-listed steps to install an App from the bundle:

  • Download the App package.
  • From the UI navigate to Apps > Manage Apps.
  • In the top right corner select Install app from file.
  • Select Choose File and select the App package.
  • Select Upload and follow the prompts.

CONFIGURATION

Data Collection

For data collection we need to setup Splunk DB Connect on Heavy Forwarder.
Deploy Heavy Forwarder by following instructions https://docs.splunk.com/Documentation/Splunk/8.0.5/Forwarding/Deployaheavyforwarder
Install Splunk DB Connect app on forwarder.
In Splunk DB Connect, access the Configuration > Databases > Identities tab and click New Identity.
Complete the fields as mentioned below.
* Identity Name : 3CX
* username: phonesystem
* Password needs to be fetched from the 3CX ini file.

Location of the file in various platform is as below.


For Windows : C:\Program Files\3CX Phone System\Bin\3CXPhoneSystem.ini

For Linux: /var/lib/3cxpbx/Bin/3CXPhoneSystem.ini
* From this file look for the stanza name DbAdminREADONLY. Fetch the password from the stanza and fill it in the password field of Identity Wizard.
After Creating Identity Create DB Connections with 3CX PostgresQL.
In Splunk DB Connect, click the Configuration > Databases > Connections tab.
Click New Connection.
On the New Connection page, complete the following fields:
* Connection Name: 3CX
* Identity: Choose the identity 3CX Created in first step.
* Connection Type: Postgress
* Timezone: Select Timezone if required.
* Click on Save.

  • Download the Splunk App For 3CX and extract the archive.
  • From default directory of this App, copy the db_inputs.conf.template file to $SPLUNK_HOME/etc/apps/splunk_app_db_connect/local/db_inputs.conf
  • Open the file in editor, in the default stanza replace the host value with the hostname you want to add for your forwarder.
  • Restart the Splunk.

Macro Definition Change

Macro definition change is required to improve the dashboard performance. Follow below steps to change the macro definition.
Go to Settings > Advanced search > Search macros.
Change App to Splunk App for 3CX.
Search for default_index and click on it.
Change value in the definition section from index=* to index=<custom-index>. The custom-index is the index which you have selected in Data Collection section while creating DB Connect inputs.
* Final value should look something like: index=main.

UNINSTALL APP

To uninstall app, user can follow below steps:
SSH to the Splunk instance
Go to folder apps($SPLUNK_HOME/etc/apps)
Remove the checkpoint_dome9_app_for_splunk folder from apps directory
Restart Splunk

KNOWN LIMITATION

  • NA

RELEASE NOTES

Version 1.0.0
* Created App with two dashboards, Insights and Alerts.

OPEN SOURCE COMPONENTS AND LICENSES

  • NA

TROUBLESHOOTING

  • Data collection issue
  • Check Data Collection guide from CONFIGURATION section to make sure Database collection is all good.
  • Verify the data via searching the data with index=<your-selected-index-during-configuration>.

  • Dashboards are not populating

  • Look for the index in which we are indexing the data. If the data is not there in the index then check Data collection issue or else go through second point.
  • Make sure the index is specified in the default_index macro. Check Macro Definition Change guide from CONFIGURATION section for more details.

  • Dashboards are not working as expected.

  • Make sure Javascript is enabled in the browser. Otherwise the Dashboard will not work as expected.

CONTRIBUTORS

  • Usama Houlila
  • Preston Carter
  • Ahad Ghani

SUPPORT

Release Notes

Version 1.0.0
July 28, 2020

The app delivers insights on Alerts and information related to calls on the dashboards.
