Allkun Mon for ISO 8583

Splunk AppInspect Passed
Admins: Please read about Splunk Enterprise 8.0 and the Python 2.7 end-of-life changes and impact on apps and upgradeshere.
Overview
Details
Today, obtaining data in real time is essential since it allows us to instantly detect the behavior of people, systems and businesses, especially in retail, financial services and banking. However, many times this information cannot be easily obtained due to the high sensitivity of the applications involved.
Allkun is a suite that allows you to capture information in real time (Allkun Raptor), Process (Allkun CEP), Visualize (Allkun Mon) and Alert Management (Allkun EM).

Allkun Mon for ISO8583 relies on flow data processed by Allkun Raptor and allows you to easily analyze it using Splunk® Enterprise or Splunk® Cloud.

Allkun Raptor allows you to capture transactions from network traffic using a port mirror or network tap and interprets them to a Splunk readable json format.

This product:
- Supports transactional protocols like ISO 8583, Visa/Mastercard, H2H, NDC+ and custom protocols.
- Performs data packet reconstitution.
- Encrypt and/or obfuscate selected data fields.
- Output data using tcp, udp, Azure EventHub, http, text file and more.

Allkun Mon for ISO8583 is a basic tool to visualize information captured by Allkun Raptor. It works with a data model based in the ISO8583 standard fields.

This App require the deployment of the following dependencies:
- Allkun TA ISO 8583 (https://splunkbase.splunk.com/app/5139)
- Flow Map Viz (https://splunkbase.splunk.com/app/4657/)
- Lookup File Editor (https://splunkbase.splunk.com/app/1724/)

Start Your Allkun Raptor Free Trial.
Please write us for an evaluation:
https://www.kudaw.com/en/contact
contacto@kudaw.com

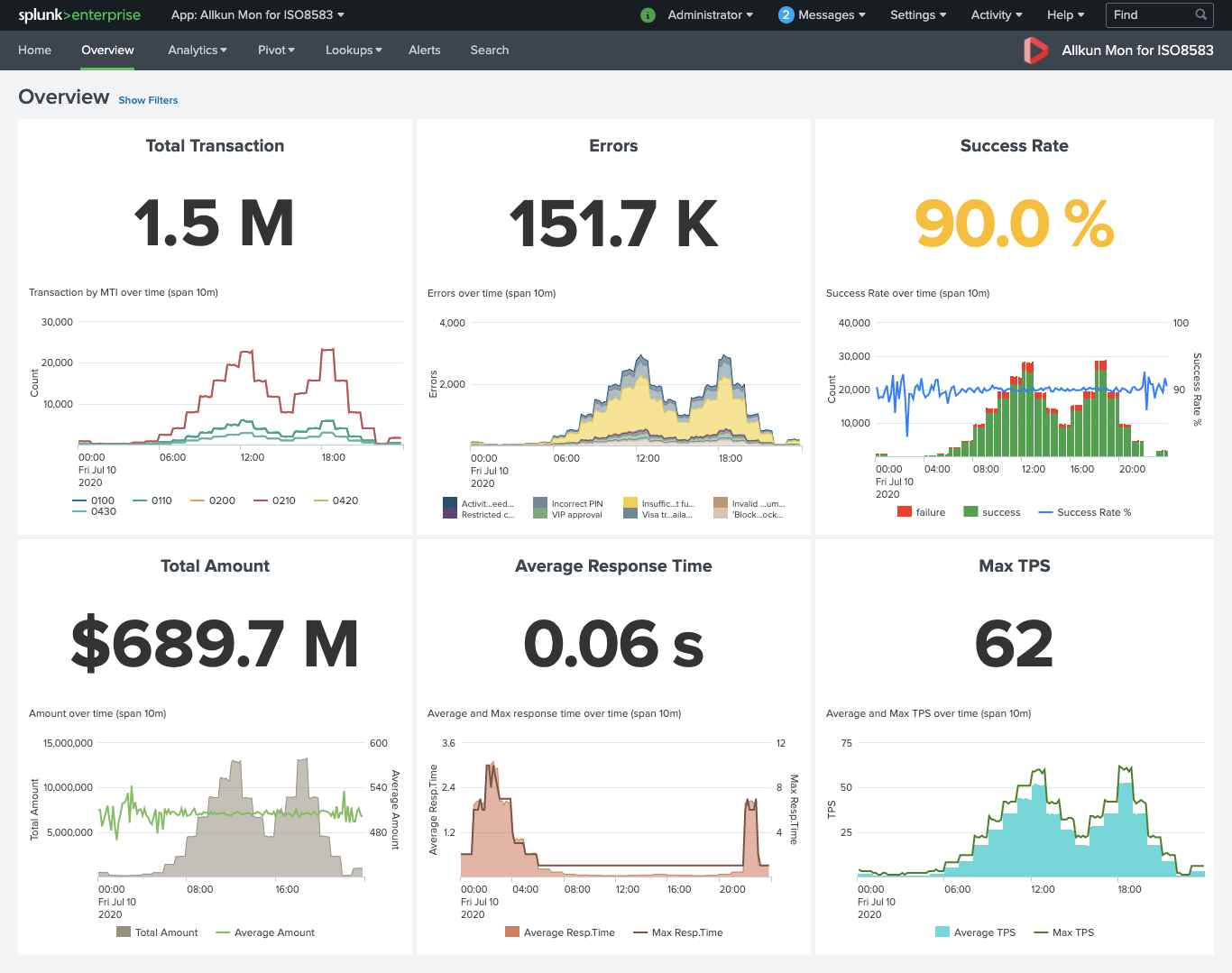

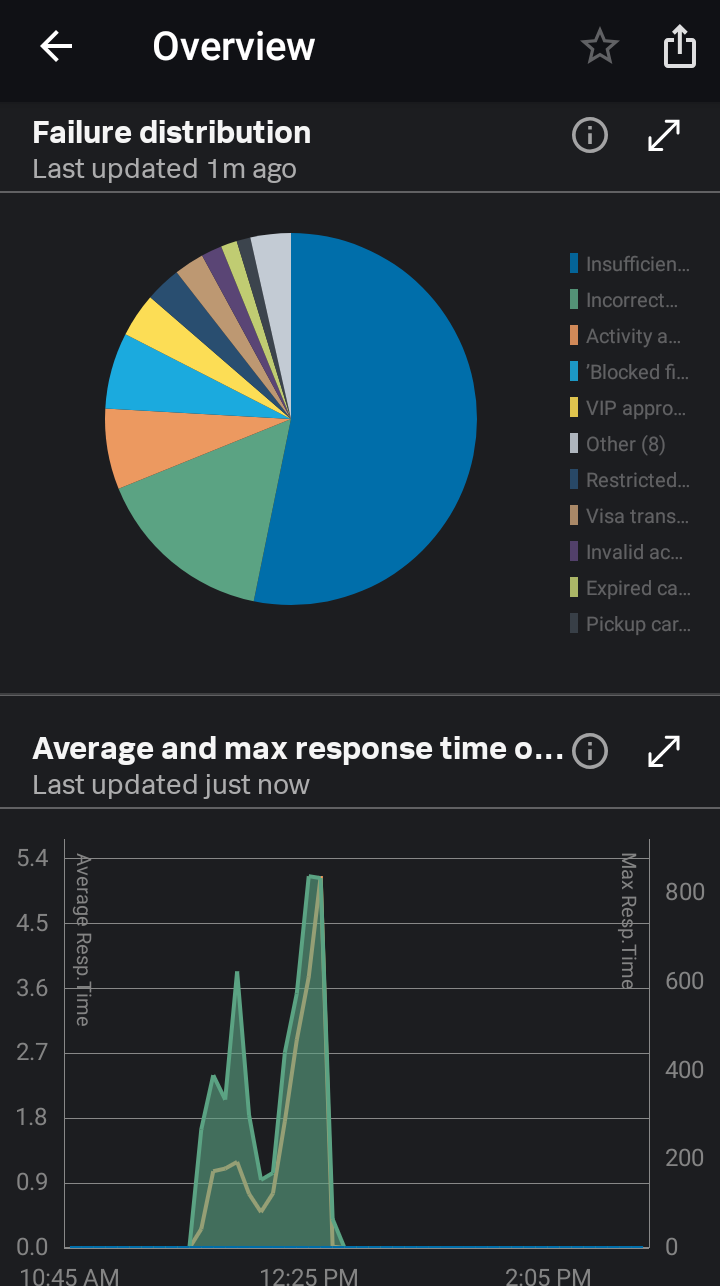

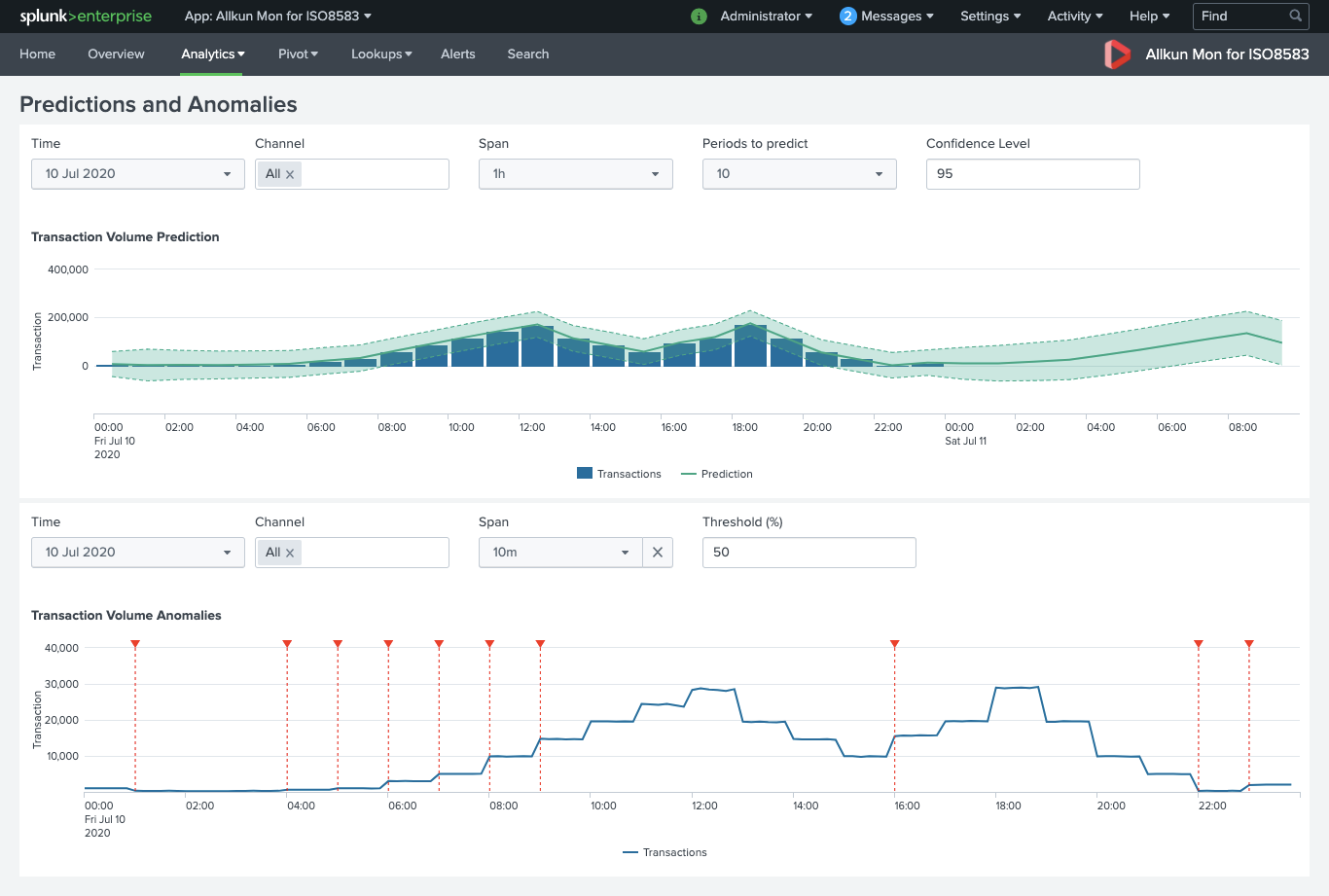

This App provide dashboards and reports to analyze transactional behavior, monitoring metrics like transaction count over time, success rate, amounts, response time, failures, transactions per second.

You need to have Allkun Raptor software to capture, process and feed data into this App.

If you want to test the application initially without Allkun Raptor, you can use our docker image, which generates synthetic messages.

Visit Raptor Data Generator: https://hub.docker.com/r/kudaw/raptordatagen

Please write us for an evaluation:
https://www.kudaw.com/contact
contacto@kudaw.com

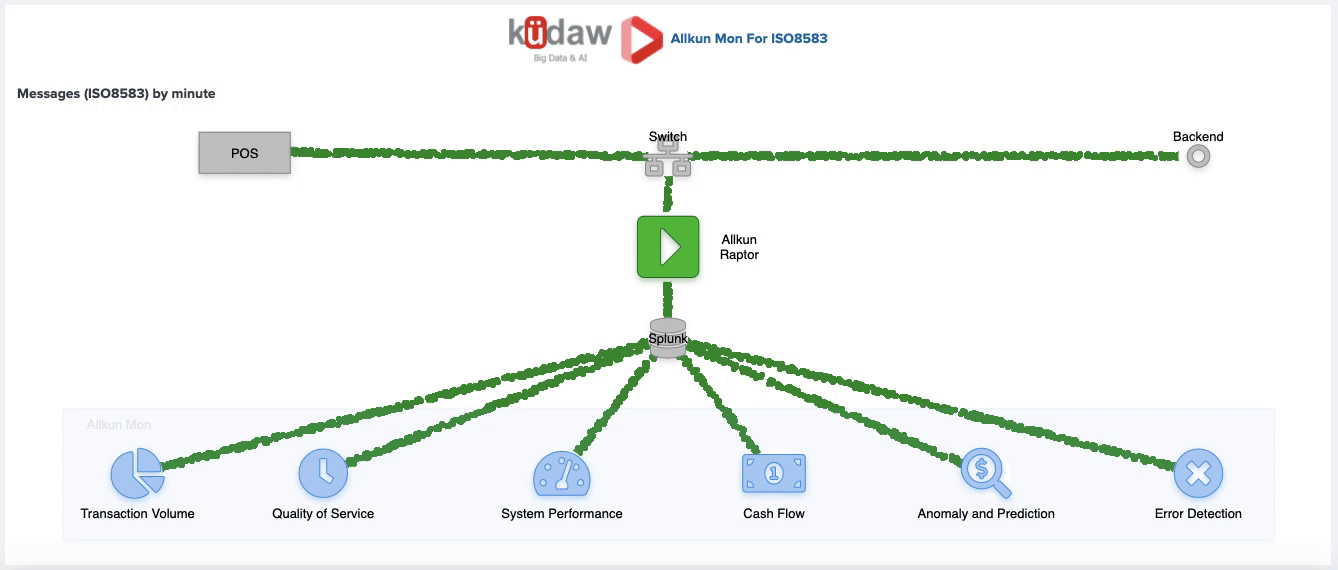

Architecture

In this application you must:
- Accelerate data model ISO8583
- Configure macro set_transactionid: Fields to set the unique id for each transaction
- Configure macro set_amount: Format to obtain the amount of transaction
- Lookup channel: Set the channel by source
- Send messages from source (Allkun Raptor or Raptor Data Generator docker)

Release Notes

Version 1.0.0
July 20, 2020

1.0.0
- Initial release
