Cryptosuite Add-On

Admins: Please read about Splunk Enterprise 8.0 and the Python 2.7 end-of-life changes and impact on apps and upgradeshere.
Overview
Details
The Splunk® Support Add-On Cryptosuite is the successor to the deprecated Support Add-On for Hypercrypto (https://github.com/my2ndhead/SA-hypercrypto).

It implements and extends the custom search commands crypt and hash for encrypting/decrypting and hashing fields and events at search time.

* Encrypt/decrypt fields or complete events during search time using RSA, AES-128/192/256-CBC or AES-128/192/256-OFB
* Hash fields or complete events during search time using MD5, SHA1, SHA2 (224, 256, 384, 512), SHA3 (224, 256, 384, 512), Blake2
* Manage access to encryption and decryption functionality on a per-user or per-role basis via two shipped roles
* Manage useable encryption/decryption keys on a per-user or per-role basis via the app's configuration screen

Cross-compatible with Python 2 and 3. Tested on Splunk Enterprise 8.0.2.1.

Licensed under http://creativecommons.org/licenses/by-nc-sa/4.0/.

* Authors: Harun Kuessner, formerly also: Simon Balz, Mika Borner, Christoph Dittmann
* Version: 2.0.1b
* License: Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License

Feel free to submit discovered issues or enhancement requests via https://github.com/hRun/TA-cryptosuite/issues.

TA-cryptosuite

The Splunk® Support Add-On Cryptosuite is the successor to the deprecated Support Add-On for Hypercrypto (https://github.com/my2ndhead/SA-hypercrypto).

It implements and extends the custom search commands crypt and hash for encrypting/decrypting and hashing fields and events at search time.

  • Encrypt/decrypt fields or complete events during search time using RSA, AES-128/192/256-CBC or AES-128/192/256-OFB
  • Hash fields or complete events during search time using MD5, SHA1, SHA2 (224, 256, 384, 512), SHA3 (224, 256, 384, 512), Blake2
  • Manage access to encryption and decryption functionality on a per-user or per-role basis via two shipped roles
  • Manage useable encryption/decryption keys on a per-user or per-role basis via the app's configuration screen

Cross-compatible with Python 2 and 3. Tested on Splunk Enterprise 8.0.2.1.

Licensed under http://creativecommons.org/licenses/by-nc-sa/4.0/.

  • Authors: Harun Kuessner, formerly also: Simon Balz, Mika Borner, Christoph Dittmann
  • Version: 2.0.1b
  • License: Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License [4]

Installation

  1. Just unpack to $SPLUNK_HOME/etc/apps on your Splunk search head and restart the instance. Use the deployer in a distributed environment. Make sure, the app's folder name in $SPLUNK_HOME/etc/apps is TA-cryptosuite (Downloading apps from Github and uploading them to Splunk might result in different folder names).
  2. Assign the roles 'can_encrypt' and/or 'can_decrypt' to users/roles who should be able to encrypt/decrypt data using the crypt command. The hash command will automatically be available to all users.
  3. Read and follow the requirements below.
  4. Optional: Set python.version=python2 or python.version=python3 in commands.conf if you would like to explicitly specify the Python version to use. Otherwise this will be determined by your instance's global settings.
  5. Optional: Change the app's visibility via Manage>Apps or app.conf if you wish. Configuring new keys/salts relies on an internal dashboard though.

Requirements

In order for the add-on to be fully usable you'll need to create and upload cryptographic keys. Here's how. You can also find some examples and tips in the examples/ directory.

  1. Generate a valid RSA key pair (optionally with key encryption) and store it in PEM format. Or create a "key file" for AES.

     Example RSA key pair creation with currently supported parameters using OpenSSL:

         openssl genrsa [-aes256|-des|-des3 -passout pass:password] -out private.pem \<2048|4096>

         openssl rsa -in private.pem -outform PEM -RSAPublicKey_out -out public.pem

         Note that using 1024 bit keys is considered unsafe and therefore not supported by the app.

         Important Note: Use of encrypted private RSA keys is not yet supported!

     Example "key file" creation for AES:

         Put your key and IV in UTF-8 into a plain ASCII file. Key has to go on line 1 and IV on line 2.

         The IV's length has to be 16 bytes/characters. The key's length has to be 16/24/32 bytes/characters respectively for 128/192/256 AES encryption. For security purposes 256 bit keys are recommended unless performance is important.

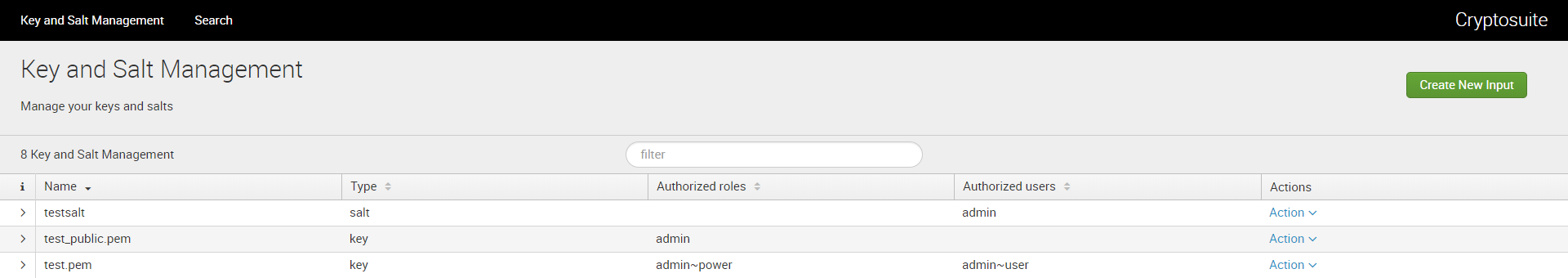

  1. Go to the app's configuration dashboard in your preferred browser. Click "Create New Input".

     Name: Enter the name you would like the your key to be accessible through. E.g. the original key file's name.

     Type of Data: Select "New key".

     Key/Salt: Copy-paste the contents of your generated key file here. Your key will be stored encrypted in passwords.conf.

     RSA key encryption password: Important Note: Use of encrypted private RSA keys is not yet supported! Only required if you are currently configuring an encrypted private RSA key. Supportd key encryption algorithms are AES-256-CBC, DES-CBC and DES-EDE3-CBC.

     Authorized roles: Select which roles you want to grant permissions to use the key. Will be ORed with authorized users. Users/roles will also require the "can_encrypt" and/or "can_decrypt" role in order to use the crypt command in the first place.

     Authorized users: Select which users you want to grant permissions to use the key. Will be ORed with authorized roles. Users/roles will also require the "can_encrypt" and/or "can_decrypt" role in order to use the crypt command in the first place.

     Note: For a RSA key pair, you'll have to do this twice. Once for the private key and once for the public key.

If you plan on salting your hashes, create and store upload salts like so:

  1. Go to the app's configuration dashboard in your preferred browser. Click "Create New Input".

     Name: Enter the name you would like the your salt to be accessible through.

     Type of Data: Select "New salt".

     Key/Salt: Enter or copy-paste your salt here. It will be stored encrypted in passwords.conf.

     RSA key encryption password: Leave empty.

     Authorized roles: Select which roles you want to grant permissions to use the salt. Will be ORed with authorized users.

     Authorized users: Select which users you want to grant permissions to use the salt. Will be ORed with authorized roles.

Note: Handling keys and salts this way is a security feature, since specifing the key/salt directly in a Splunk search directly would make them visible in the _internal index.

Usage

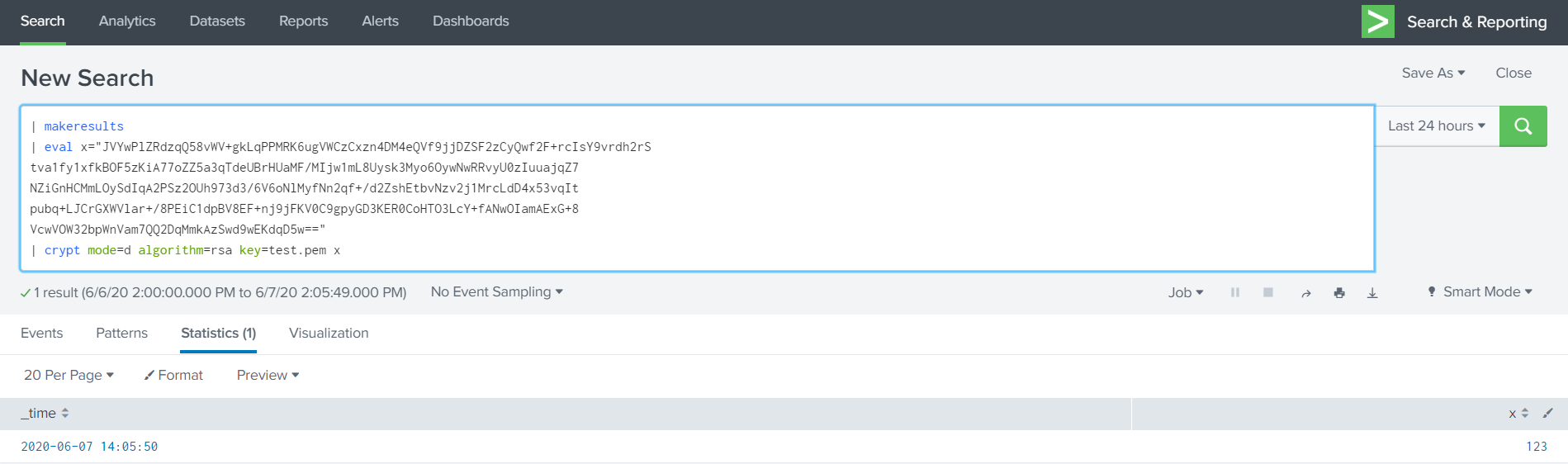

Syntax:
crypt mode=<d|e> algorithm=<rsa|aes-cbc|aes-ofb> key=<key_name> \<field-list>

mode: Mandatory. Set to e to encrypt, set to d to decrypt the given field list using the provided key.

algorithm: Mandatory. Set to the cryptographic algorithm you would like to use for encryption/decryption.

key: Mandatory. Set to the name of a key you (or your admin) configured previously.

Syntax:
hash algorithm=<md5|sha1|sha224|sha256|sha384|sha512|sha3_224|sha3_256|sha3_384|sha3_512|blake2b|blake2s> [salt=\<salt_name>] \<field-list>

algorithm: Mandatory. Set to the hashing algorithm you would like to use. SHA3 and Blake2 are only available when using Python 3.

saltfile: Optional. Set to the name of a key you (or your admin) configured previously.

Examples

Encrypt the values of the plaintext fields "subject" and "content" of sourcetype "mail" using rsa and the key "public.pem".

   search sourcetype="mail" | crypt mode=e algorithm=rsa key=public.pem subject content

Encrypt raw events of sourcetype "mail" using AES-256-CBC and collect the results in a summary index.

   search sourcetype="mail" | crypt mode=e algorithm=aes-cbc key=secret.txt _raw | collect index=summary

Decrypt the content of the already RSA encrypted and summary-indexed field "username" for output in plain text using RSA. The key file "private.pem" is encrypted with AES-256-CBC, so the correspondig password has to be set via the app's set up screen prior to using the key.

   search index=summary sourcetype="server::access" | crypt mode=d algorithm=rsa key=private.pem username | table _time action username

Hash a raw event containing some malware threat artifact using sha256.

   search index=threat_intel source=sample.txt | hash algorithm=sha256 _raw

Notes & Restrictions

  • Attempts to encrypt or hash _time will be ignored since Splunk always expects a valid _time field.
  • Wildcards for field names are not supported (yet).
  • Encryption and decryption of big quantities of data can be ressource intensive operations. Use with caution in old or feeble environments.
  • Currently only AES-256-CBC, DES-CBC and DES-EDE3-CBC are supported for private RSA key file encryption.
  • To implement proper key/salt management (without relying on my weak JavaScript skills for a management dashboard) the add-on leverages the comfort Splunk Add-On Builder grants. \
    This is why your key/salt configurations are stored as modular input configurations. Don't worry, they are not used as such. A future version of the add-on might implement this better.

(Important) Security Considerations

  • Granting a user or role the role 'can_encrypt' or 'can_decrypt' needed for usage of the crypt command will also grant them the capability 'list_storage_passwords'. \
    This enables the technically savvy user to potentially read more secrets via Splunk's REST API than desirable. \
    Unfortunately as of now there is no way around this if the encryption/decryption keys and salts used for this app's function should not be stored in plaintext on disk. \
    You can argue this way or that. My assumption is that only high-privileged users will use the crypto functionality in the first place, and thus prefferred encrypted keys over potentially exessive permissions.
  • The keys and salts you upload are stored encrypted in passwords.conf. However to quote a Splunk blog post: "[...] Since the encrypted data and the encryption key are stored on the same machine, cryptographically this is equivalent to obfuscation. While some people might argue that this is very weak encryption, it is the best we can do with storing the encrypted data and encryption key on the same machine and it is definitely better than clear text passwords [...]"[0].

  • The used libraries (see Attribution) have been chosen due to their compatibility with multiple Python versions and OSes. They might not be the best implementations of the respective algorithms and are certainly not the fastest, but more popular implementations posed compatibility challenges due to relying on platform-specific compiled c modules.

  • The used RSA implementation is only capable of processing so many bytes of data at once during encryption, fields larger than that value have to be split into blocks. This might enable certain attacks on the RSA crypto system. To mitigate the chances of a successful attack, random padding (PKCS#1 v2 (OAEP)) is used and can not anymore be disabled in this version of the add-on.
  • Using 1024 bit RSA keys is generally considered unsafe and therefore not possible using with the add-on.
  • I chose AES-CBC and AES-OFB as the only available modes as they offer the best balance between performance and security for the purposes of this add-on.

  • It is not recommended to use MD5 or SHA1 (on passwords) since these hashing algorithms are not seen as safe anymore.

  • SHA3 and Blake2 are only available when using Python3 as your environments interpreter.

TODO / Roadmap / Known Issues

  • Some more testing of error handling
  • Test with Splunk 7.x
  • Increase performance
  • When saving keys/salts Splunk sometimes randomly removes \n or spaces for no apparent reason. Need to account for this in the code.

v2.1 plan

  • Re-implement support for encrypted private RSA keys
  • Disable helper inputs by default

v2.2 plan

  • Enhance performance
  • Potentially implement support for wildcards for field names

v2.3 plan

  • Implement obfuscate command to enable (de)obfuscating data using XOR, ROT-13, ...

History

v2.0.1b

  • Fixed support for distributed environments

v2.0b

  • Ensured and tested Splunk 8 compatibility
  • Ensured and tested Python2/3 cross-compatibility for crypt command
  • Ensured and tested Python2/3 cross-compatibility for hash command
  • Added a logo

v2.0a

  • Updated Splunk SDK for Python
  • Using custom search command protocol v2 now
  • Updated README and docs with soon-to-come changes
  • Implemented proper key/salt management on per-user and per-role basis
  • Added licenses to used Python modules and gave credit

  • Removed keyencryption parameter from crypt command and replaced by automatic detection

  • Removed randpadding parameter and support for non-random padding
  • Implemented basic sanity checks for private/public RSA key usage during encryption/decryption attempts
  • Implemented PKCS#1 v2 (OAEP) support
  • Implemented possibility for AES-128/192/256-CBC/OFB field/event encryption & decryption
  • AES-CBC and AES-OFB are now the only parameter values and modes for AES encryption/decryption

  • Ensured Splunk 8 and Python 2/3 cross-compatilibity for hash command

  • Hashes will now be written to a new field with the name of the used algorithm
  • Renamed saltfile parameter to salt
  • Implemented SHA3 and Blake2 support for environments using Python 3

See https://github.com/my2ndhead/SA-hypercrypto for previous, deprecated versions.

Attribution

The add-on relies on the Splunk Add-On builder[1], developed by Splunk and licensed under the Apache License, Version 2.0 http://www.apache.org/licenses/LICENSE-2.0.

The crypt command uses a slightly modified version of Sybren A. Stuevel's (https://stuvel.eu/) pure-Python RSA implementation [2] which is licensed under the Apache License, Version 2.0 http://www.apache.org/licenses/LICENSE-2.0. This module itself relies on Ilya Etingof's pyasn1 Python module [2.2] which is licensed under BSD 2-Clause.

Changes include the PKCS#1 v2 (OAEP) support suggested and implemented by Inada Naoki (https://twitter.com/methane) [2.3] which is licensed under the Apache License, Version 2.0 http://www.apache.org/licenses/LICENSE-2.0. as well.

The crypt command also uses Richard Moore's (http://www.ricmoo.com/) pure-Python AES implementation [3] which is licensed under the MIT License, https://opensource.org/licenses/MIT.

License

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. [4]

This roughly translates to

  • You may freely use, share and adapt this work non-commercially as long as you give appropriate credit. When adapting or sharing, this needs to happen under the same license, changes should be indicated.
  • You may freely use this work in a commercial environment as long as the use is not primarily intended for commercial advantage or monetary compensation. YOU MAY NOT SELL THIS WORK. Neither standalone nor within an application bundle.

As this paragraph is not a substitute for the license, please reffer to References for completeness and correctness.

Feel free to contact me should you plan to use the add-on outside these terms.

References

[0] https://www.splunk.com/en_us/blog/security/storing-encrypted-credentials.html

[1] https://splunkbase.splunk.com/app/2962

[2] https://github.com/sybrenstuvel/python-rsa

[2.2] https://github.com/etingof/pyasn1

[2.3] https://github.com/sybrenstuvel/python-rsa/pull/126 and https://github.com/methane/python-rsa/tree/rsa_oaep

[3] https://github.com/ricmoo/pyaes

[4] http://creativecommons.org/licenses/by-nc-sa/4.0/

Release Notes

Version 2.0.1b
Sept. 26, 2020

Implemented fix for distributed environments.

Version 2.0b
June 7, 2020

Major overhaul of the long deprecated SA-hypercrypto. Cross-compatible with Python 2 & 3 and Splunk 8.
