Introduction

Welcome to the Splunk for Squid app! This app provides field extractions for Squid access logs as well as a dashboard and a request search interface.

This app is maintained by Patrik Nordlen. Suggestions and bug reports are appreciated.

Installation

To install, extract the .spl file in $SPLUNK_HOME/etc/apps

You will need to enable the appropriate inputs, either via inputs.conf, or through the Manager in the Splunk GUI. Splunk for Squid expects Squid access logs to have a sourcetype of "squid".

Using Splunk for Squid

Field extractions

The most basic feature provided by this app is to extract fields from Squid access logs. The following fields are extracted:

duration (Time in milliseconds required for handling the request)
clientip (Client IP address)
action (Resulting action for a request, like TCP_HIT or TCP_MISS for instance)
http_status (The HTTP status returned for a request)
bytes (The amount of bytes returned to client, including headers)
method (HTTP method)
uri (Requested URI)
uri_host (Host portion of the requested URI)
uri_path (Path portion of the requested URI)
username (Username associated with the client connection)
hierarchy (Hierarchy data tags)
server_ip (The IP address of the destination host)
content_type (Content type for data returned)

These field extractions are applied to all logs with sourcetype "squid".

Request search

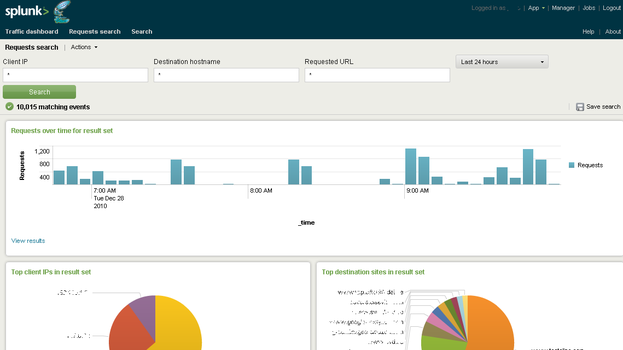

The app includes a custom search interface for Squid requests, available under "Request search". This interface shows tables and statistics for requests handled by Squid.

Dashboards

A traffic dashboard is provided, showing statistics over time for amount of requests and bandwidth consumed, as well as statistics concerning most prominent client IP addresses and destination sites.
