nProbe Application and Network Monitor

Overview
Details

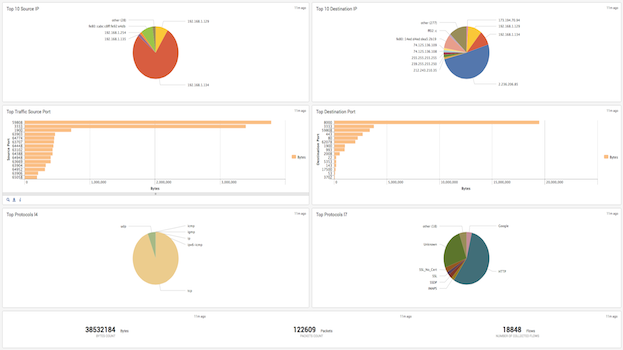

This application allows nProbe users to export the flows information within Splunk. You can use the dashboards and reports already created to derive the standard information about the flow, host, protocols:

- Top Sender
- Top Receiver
- Top Port
- Top Protocols L4
- Top Protocols L7

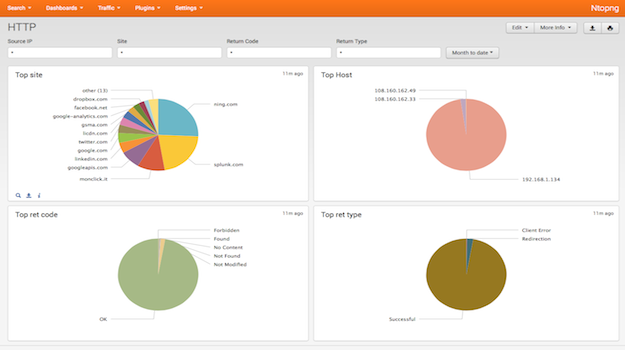

- Http Statistics

or create new report or dashboard to drive the information of your interest.

By the menu, you can create your customised dashboards or reports, set alarms for specific behaviour and use the pivot.

However, we have prepared a few simple dashboards to show what you can do using nProbe and splunk.

This free app is meant for:

  • Use with Splunk® Free
  • Receive Flow data from nProbe

This App from ntop.org allows you to ingest Flow data in Splunk® Free.

Get started in 3 easy steps:

  1. Install and enable the app by completing the setup page
  2. Send your Flow to the default listening port: 3333 via nProbe
  3. Begin collecting and analyzing Flow with Splnk!

nprobe -T "%IPV4_SRC_ADDR %L4_SRC_PORT %IPV4_DST_ADDR %L4_DST_PORT %PROTOCOL %IN_BYTES %OUT_BYTES %FIRST_SWITCHED %LAST_SWITCHED %HTTP_SITE %HTTP_RET_CODE %IN_PKTS %OUT_PKTS %IP_PROTOCOL_VERSION %APPLICATION_ID %L7_PROTO_NAME %ICMP_TYPE" --tcp "127.0.0.1:3333" -b 2 -i eth0 --json-labels

Here is how it works:

Flow is sent from your nProbe instance over the TCP protocol to port 3333. The nProbe bundled with the app receives the data and converts it into JSON messages. The data is sent to the local Splunk TCP data input 3333 which was created for you during the app installation.

Please read the Quick Start Guide (SPLUNK_HOME/ect/apps/nprobe/appserver/static).

Release Notes

Version 1.2
March 22, 2014

Completed http template support.

Version 1.1.3
March 2, 2014

Installation process improved

Version 1.1.2
March 2, 2014

Minor fix.

Version 1.1.1
Feb. 23, 2014

- Update app icon
- Minor fixes

Version 1.1.0
Feb. 19, 2014

Version 1.0
Feb. 19, 2014

nProbe app for Splunk.
